    Hard Plastic 3rd Generation Industrial Plugs Sockets 400V IP67 Water Resistance

    Ask Lasest Price
    Brand Name : HYPER
    Model Number : 1983
    Certification : DIN VDE 0623 EN/IEC 60309-2
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 100,000pcs / month
    Delivery Time : 15 days
    • Product Details
    • Company Profile

    Hard Plastic 3rd Generation Industrial Plugs Sockets 400V IP67 Water Resistance

    1983 5P 125AMPS 400V IP67 Water Resistance Inlet Hard Plastic 3rd Generation Industrial Plugs and Sockets


    Description:

    These products are used for connection of equipment in all kind of applications where it needs to be possible to connect and disconnect. ABB industrial plugs and sockets are chosen when safety, reliability and durability is requested.


    Reliable contacts prevent stops and power breaks, which leads to increased productivity.
    Durable equipment prevents time and cost lost due to maintenance.
    Safe connections prevent accidents.


    Feature:

    · Product Model:645
    · Product Type:Panel Mounted Plug
    · Standards:Conform to European/International Standards EN/IEC 60309-2
    · Protection Ratings:IP67
    · Qualifications:CE CB CCC


    Technique Parameter:




    CurrentPoles110V230V400V500V>50-500>50-500Packing unitWeight
    50a.60Hz50a.60Hz50a.60Hz50a.60Hz100-300Hza.300-500Hz
    3 Poles4 Poles5 Poles3 Poles4 Poles5 Poles3 Poles4 Poles5 Poles3 Poles
    4h4h4h6h9h9h9h6h6h7h
    1255198351130

    Earth Contact Position
    6h
    Rated Current(A)
    125
    Poles
    5
    Dimension(mm)a
    130
    b130
    c112
    d104
    e104
    f6.5
    g.18
    g.12
    l95
    s132
    Conductor crosssectional2 area (mm )Min. To Max
    25-35

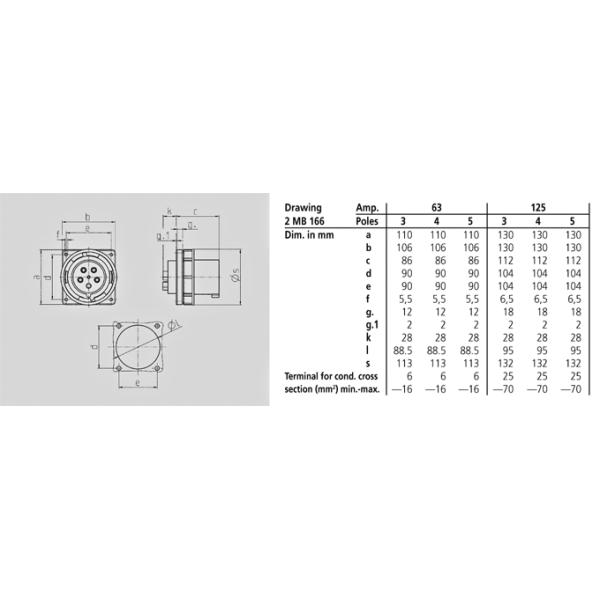

    Product Dimension:


    Picture:
